3D Printer Ultimaker
Description

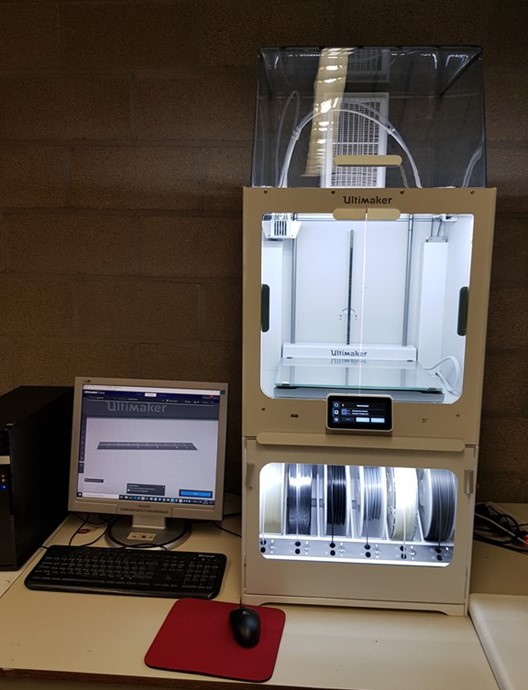

The Ultimaker S5 Pro printer is a fully automatic dual-head desktop 3D printer for rapid prototyping of complex 3D objects in thermoplastic materials using fused filament fabrication (FFF) technology. With automatic material handling, efficient air filtering, and filament humidity control, the Ultimaker S5 Pro can print complex objects in a wide range of materials. Dual-head 3D printing improves support printing with soluble supports such as HiPS and PVA, as well as allowing multi-color or multi-material printing.
Specifications
- Materials: PLA, ABS, ASA, PET/PETG, POM, PP, CPE, PC, TPU, nylon, PVA, PVB, HiPS, carbon-fiber- and fiberglass-reinforced materials (compatible with third-party filaments)
- Maximum build size: X, Y, Z = 330, 240, 300 mm
- X, Y, Z positioning resolution: 6.9, 6.9, 2.5 μm
- Z layer resolution: 0.020 mm
- Nozzle diameters: 0.25 mm, 0.4 mm, 0.6 mm
- Print tolerance Z axis: half the processed Z axis resolution
- Maximum operating temperature (at extruder tip): 300°C
- Feeder: dual-geared, reinforced for composite materials
- Filament system: any 2.85 mm material (compatible with high-strength glass and carbon fiber filaments)
- Slicer: Ultimaker Cura
- Inputs: 3D models (STL, OBJ, X3D, 3MF) and images (BMP, GIF, JPG, PNG).
Applications
The machine prints complex 3D objects in a quick and cost-effective way without the use of expensive tooling required in subtractive methods. The 3D printer can be used to test product ideas and make complicated parts for assemblies and mechanical holders. Because of the good electrical and mechanical properties of printed thermoplastics, prototypes can also serve as electronic packages and housings for electronic systems.
