Current waveform analyzer
Description

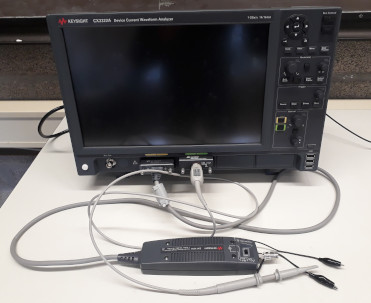

The CX3322A current waveform analyzer is an all-in-one measurement and analysis solution to solve power rail, power delivery network, and power integrity challenges. It integrates an oscilloscope’s bandwidth and sampling rate, a digital multimeter's sensitivity, and data logger’s extended duration measurement recording with waveform analytics to reveal accurate current and voltage waveforms.
Capacities
- 2 analog channels
- Bandwidth: 14 MHz (16-bit) / 200 MHz (14-bit)
- Memory depth: 4 Mpts/channel
- Maximum Sample rate: 75 MSa/s (16-bit) / 1 GSa/s (14-bit)
- Time resolution: 1 ns
- Current sensor: ± 40V, 100 MHz, 40 nA - 1 A
- Current probe resistance: 410 mohms (2 mA-1 A) / 50 ohms range (20-200 µA)
- 14.1" display with touch screen.
Applications
The CX3322A current waveform analyzer precision low-level dynamic current measurement capability at pA level and powerful waveform analytics features, can be used to:
- improve the device design and power consumption performance by accurate characterization,
- ensure the device’s reliability by capturing rare anomalies during the long-duration operation,
- shorten time-to-market of high-performance and high-reliability devices by quick anomalies identification and analysis from massive waveform data.
