Polisher and Grinder

Polisher & Grinder

Description

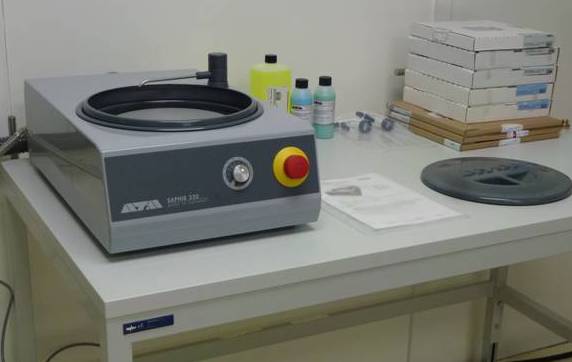

The Saphir 320 is a single-wheel polisher and grinder for working wheels up to 250 mm in diameter.

Specifications

  • Working wheel: 200 and 250 mm diameter
  • Rotation speed: 50 to 600 rpm
  • Power: 1.5 kW
  • Materials: silicon, ceramic, FR4, plastic, epoxy, metals, etc.

Applications

The Saphir 320 polisher and grinder performs cross-sectioning, top- and back-side polishing of microelectronic components and can be used for destructive failure analysis. The method is used to detect latent failures in wire-bonded and flip-chip interconnects, and voids in solder joints, underfill, encapsulant and die-attach adhesive, etc.
