Automatic dispenser
Description

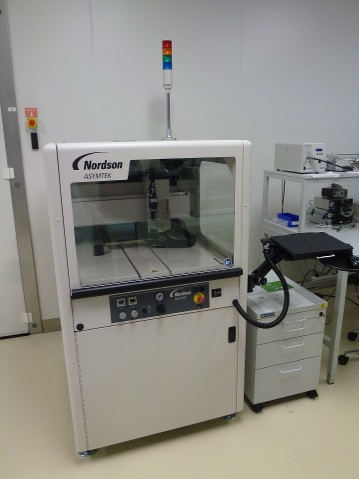

Automatic dispenser Nordson ASYMPTEK Spectrum S-820 is a fully automatic, PC-controlled multifunctional system for dispensing a variety of materials for advanced dispensing applications.
Specifications
- PC-controlled operation
- Dispensing of a variety of fluids and pastes
- Dispensing of different patterns: dots, lines, arcs, areas, etc.
- Dispensing modes: contact and non-contact
- Stream size as small as 50 μm
- X, Y, Z axes repeatability better than 25 μm
- Equipped with a height sensor and a vision system for inspection
- Compatible syringes: 10, 30, 50 and 100 cc
- Maximum substrate dimensions: 300 mm x 300 mm
- Heated work holder and fluid
- Easy service: short cleaning procedure (not longer than 15 min).
Applications
Automatic dispenser Nordson ASYMPTEK Spectrum S-820 is a fully automatic PC-controlled multifunctional system used for dispensing a variety of materials such as epoxy, polyimide, silicone, conductive and non-conductive paste, solder paste, flux, etc. It is used for advanced dispensing applications such as underfilling, cavity fill, glob-top and encapsulation, conformal coating, die attach, solder paste, surface mount adhesive, etc.
