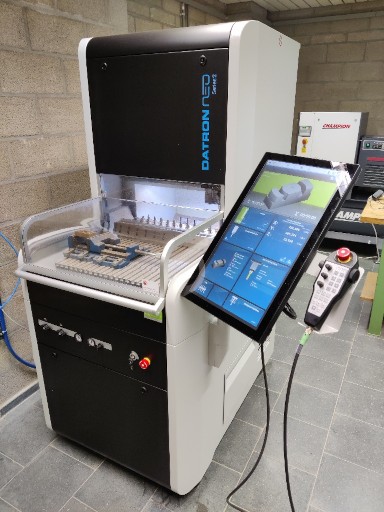

DATRON Neo series 2

DATRON Neo series 2

Description

Numerically controlled milling machine with movement along 3 axes (X, Y, Z). Designed for machining all types and sizes of parts in small quantities (prototyping). The high rotational speed of the spindle allows, in particular, machining with very small tools (less than a millimeter).

Specifications

  • Work area (X, Y, Z): 500 mm x 400 mm x 175 mm
  • Drive: brushless motors with direct ball-screw drive
  • Spindle: high-frequency 2.0 kW, 4,000 to 40,000 rpm, direct tool clamping
  • Micro-lubrication system
  • 24-position tool magazine
  • Renishaw XYZ probe for workpiece measurement and tool-length sensor
  • Clear and intuitive user interface on a touchscreen (Datron next).

Applications

Machining of different types of parts designed using 3D design software (CAD).

Some examples (non-exhaustive list):

  • Custom-designed cases adapted to their application
  • Components of an assembly
  • Replacement parts.

The machined materials can be plastic (PMMA, PTFE/Teflon, polycarbonate) or metallic (brass, aluminum, steel).
