Autotronik SMT Pick & Place

Autotronik

Description

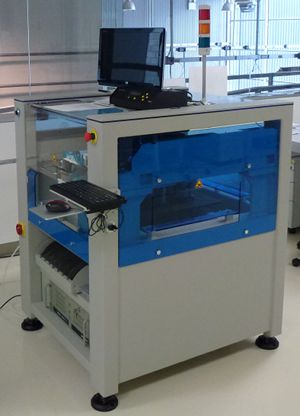

The Autotronik SMT Pick & Place BS384V1 is a fully automatic machine for mounting components on PCBs. The machine is suitable for prototyping as well as for mass production.

Specifications

  • High-accuracy mounting for 0201, 0402, 0603, SOIC, PLCC, BGA, μBGA, CSP, QFP, and fine-pitch components down to 0.3 mm
  • Placement rate: 4,000 components/hour
  • Bottom-vision alignment system
  • High-precision dispenser system
  • Vision inspection before and after production.

Applications

The machine performs high-accuracy mounting of a wide variety of SMT components on PCBs.
