Pull & shear test (Dage 4000)
Description

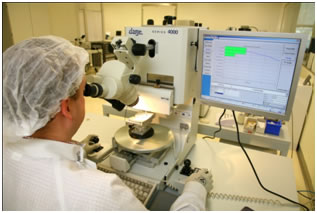

The Dage 4000 bonds tester is a compact flexible semi-automatic tool that performs a wire pull test and a shear test on electronic components.
Capacities
- Test type: wire pull, shear and tweezers test according to MIL-STD-883G
- Cartridge type: WP100, BS250, BS5KG, DS100KG and Tweezers
- Shear range: from 0 to 100 kg
- Wire pull range: from 0 to 100 g on wires from 18 to 75 μm
- X, Y and Z motorized axis
- Operating mode: manual and semi-automatic
- Automatic report generator and data storage.
Applications
The bond tester performs semiautomatic wire pull, shear and tweezers test on electronic components and micro-assembly.
